Output Board ================================================

These boards are for 2,4 or 6 DC motors (5-35V) in combination with an Arduino. You can control each speed separately with one PWM. Every PWM has a control LED, too.

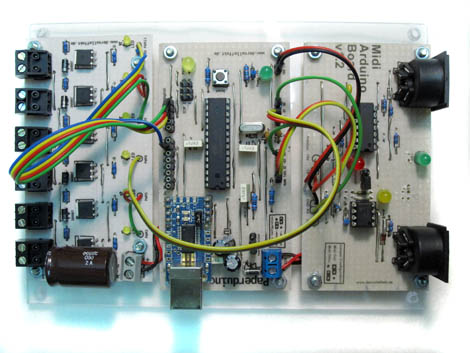

outputboard, paperduino and midiboard

Downloads ===================================================

- Double Output Board

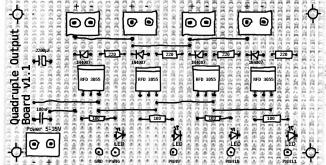

- Quadruple Output Board

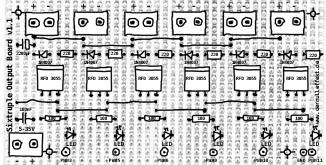

- Sixtruple Output Board

Parts =======================================================

for the Double Output Board:
- 2 MOS-FET RFD 3055
- 2 standard LEDs
- 1 elkos 2200µF
- 1 capacitors 100nF
- 2 diodes 1N4007
- resistors: 2x 220Ohm, 2x 100Ohm

Program =====================================================

Midi_to_6xAnalog_v02
